A Fissure and Channel near Pavonis Mons
ESP_086934_1775  Science Theme: Volcanic Processes

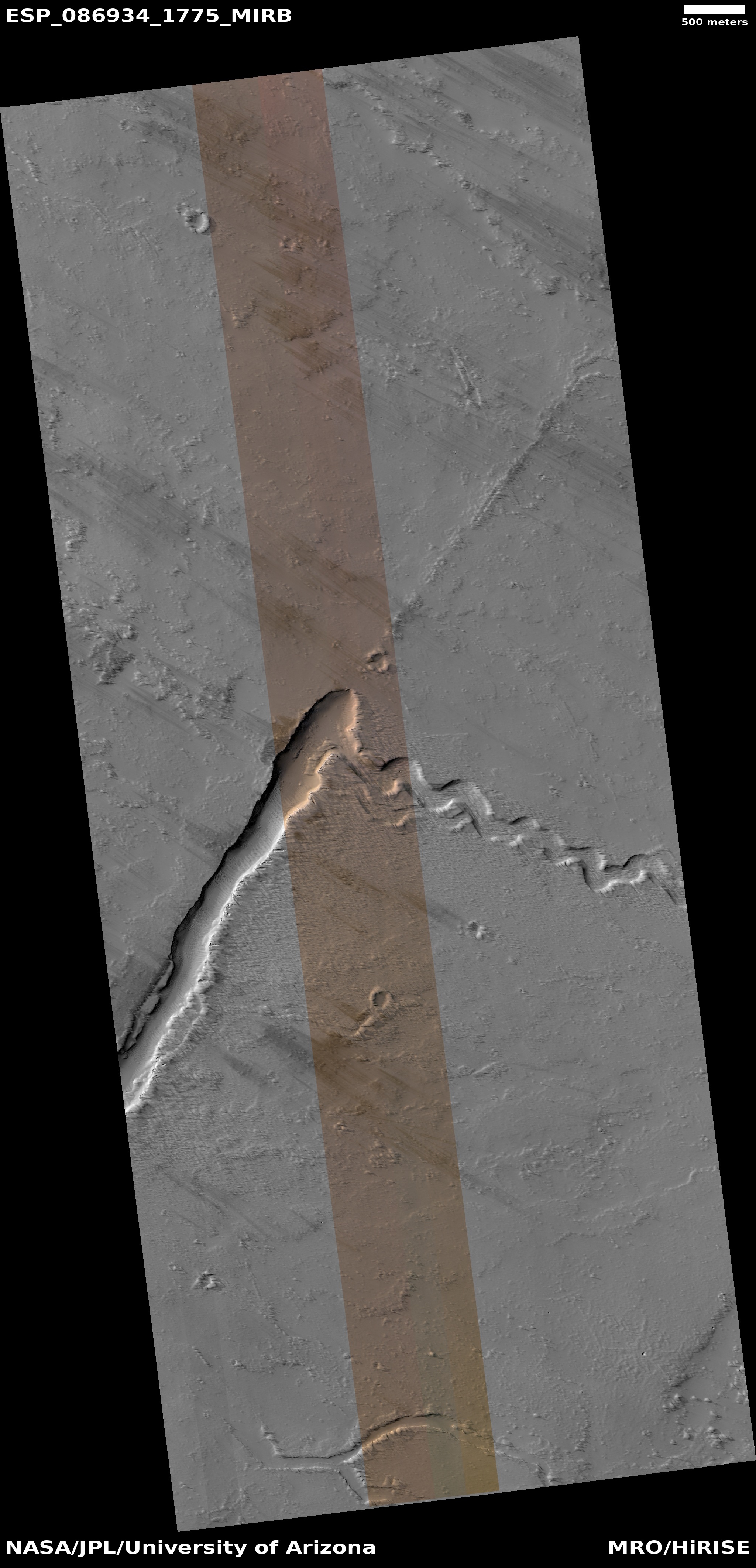

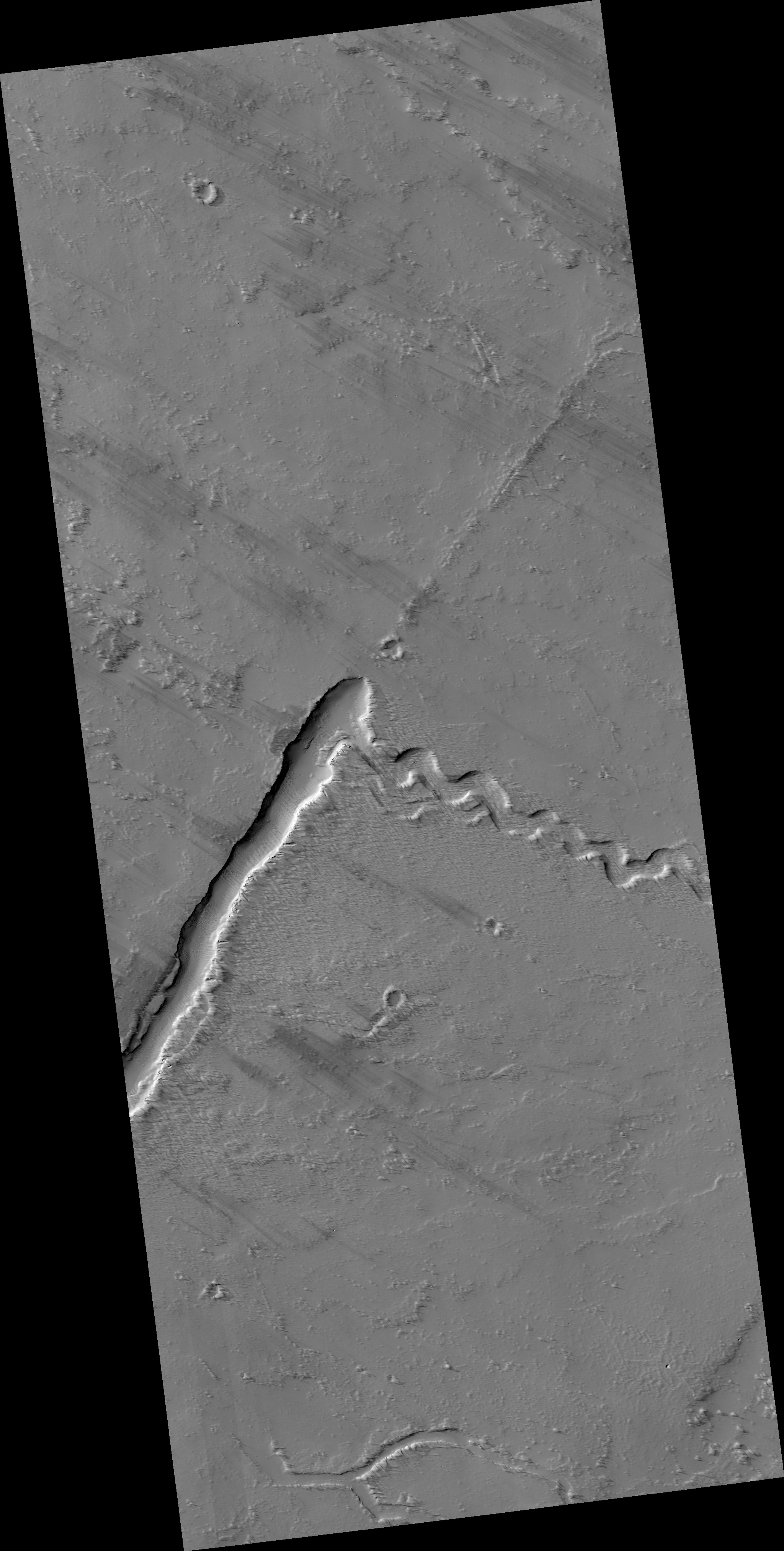

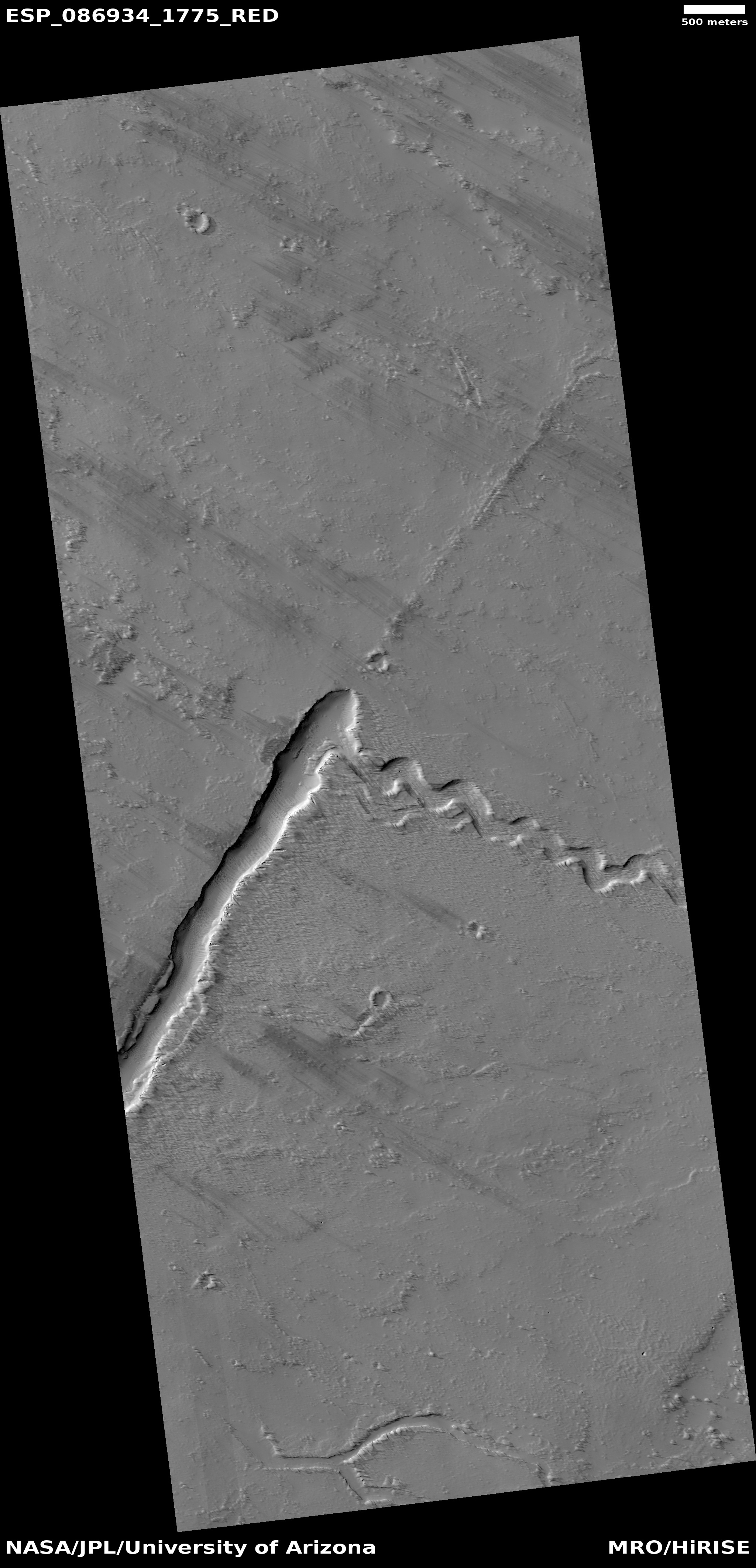

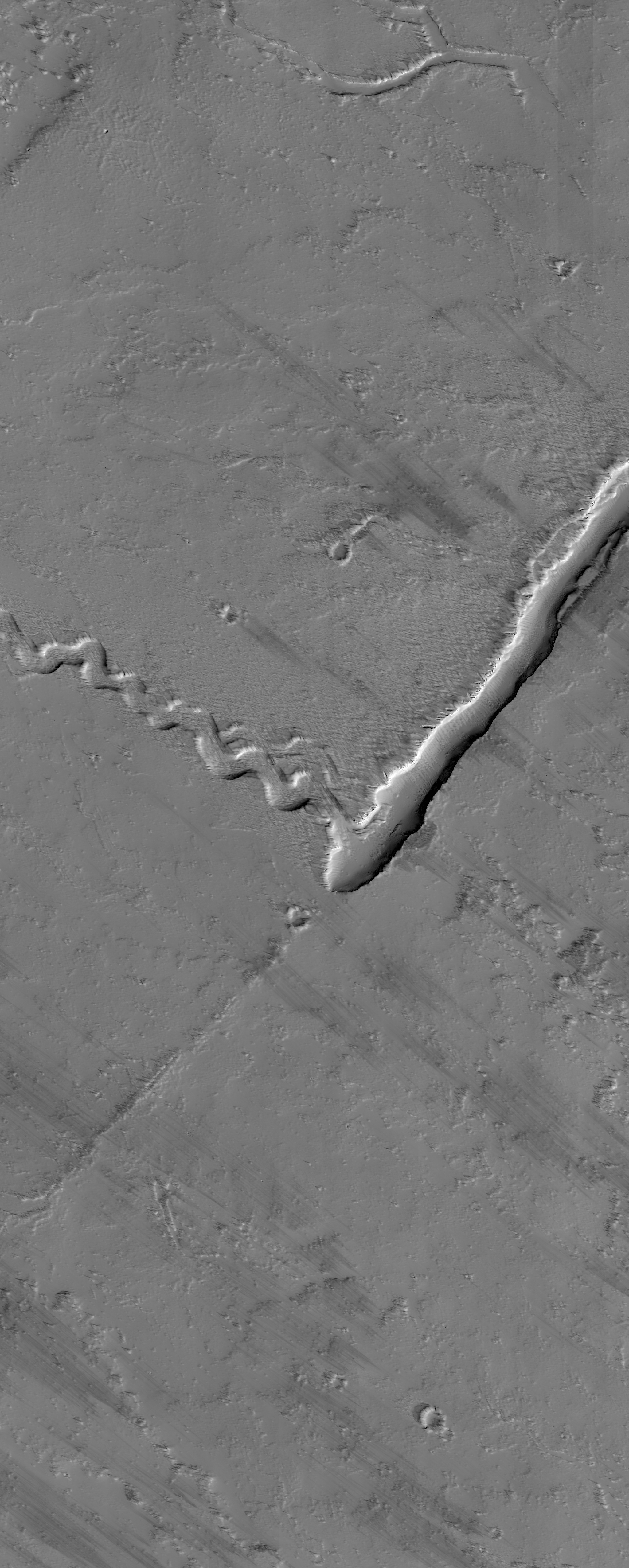

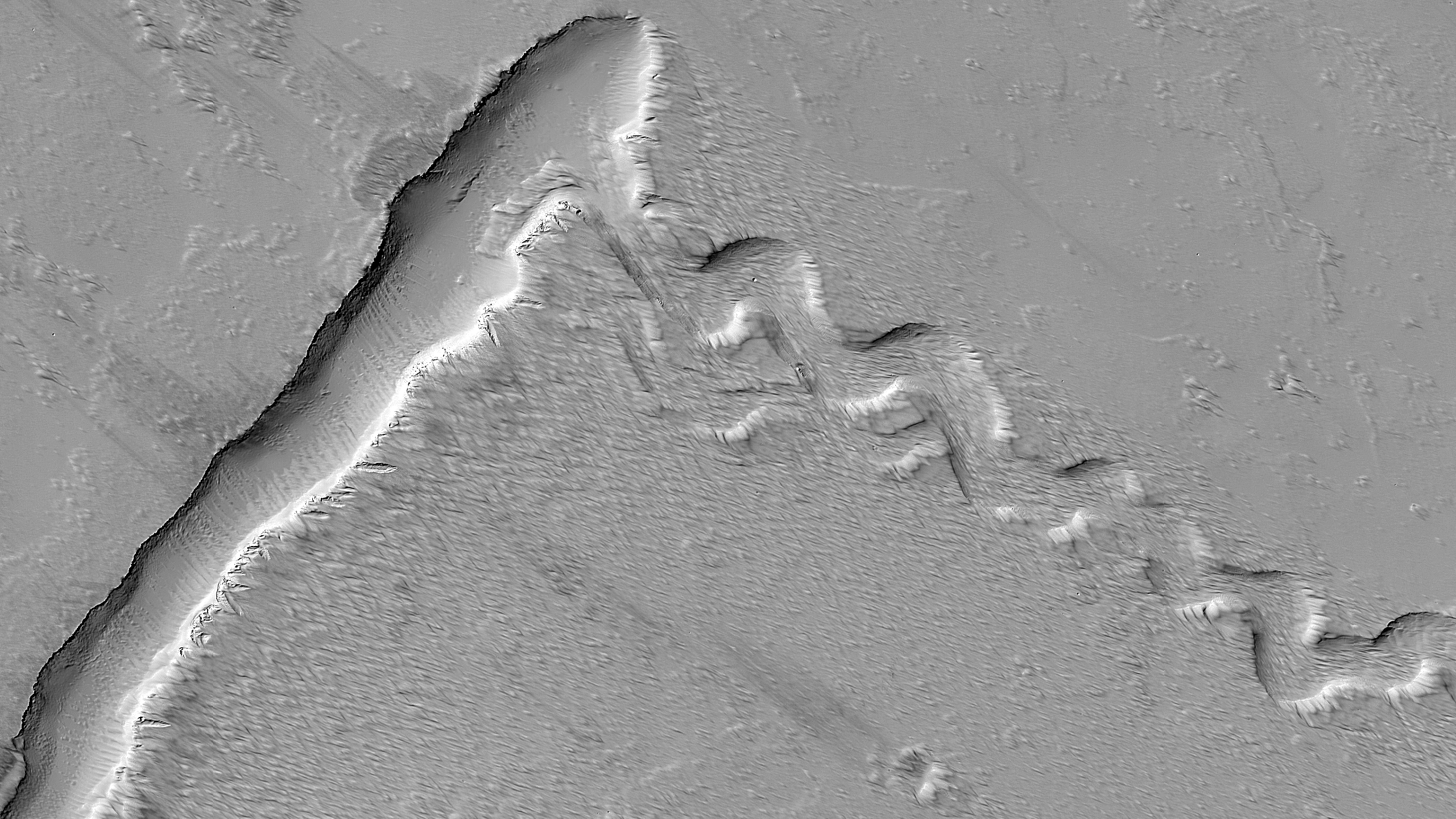

This image shows striking features. A linear trough strikes northeast, then abruptly ends (or changes into a narrow ridge). Where the trough ends, a sinuous channel has an east-southeast strike, trending at almost a right angle to the trough. What happened to form these features?

We can speculate that first there was a southwest-to-northeast trending fracture or fault, perhaps associated with a volcanic vent. Groundwater (or some other runny fluid) coursed through the fault until overflowing and forming the sinuous channel. Continued movement through the fault carved a trough up to the overflow point.

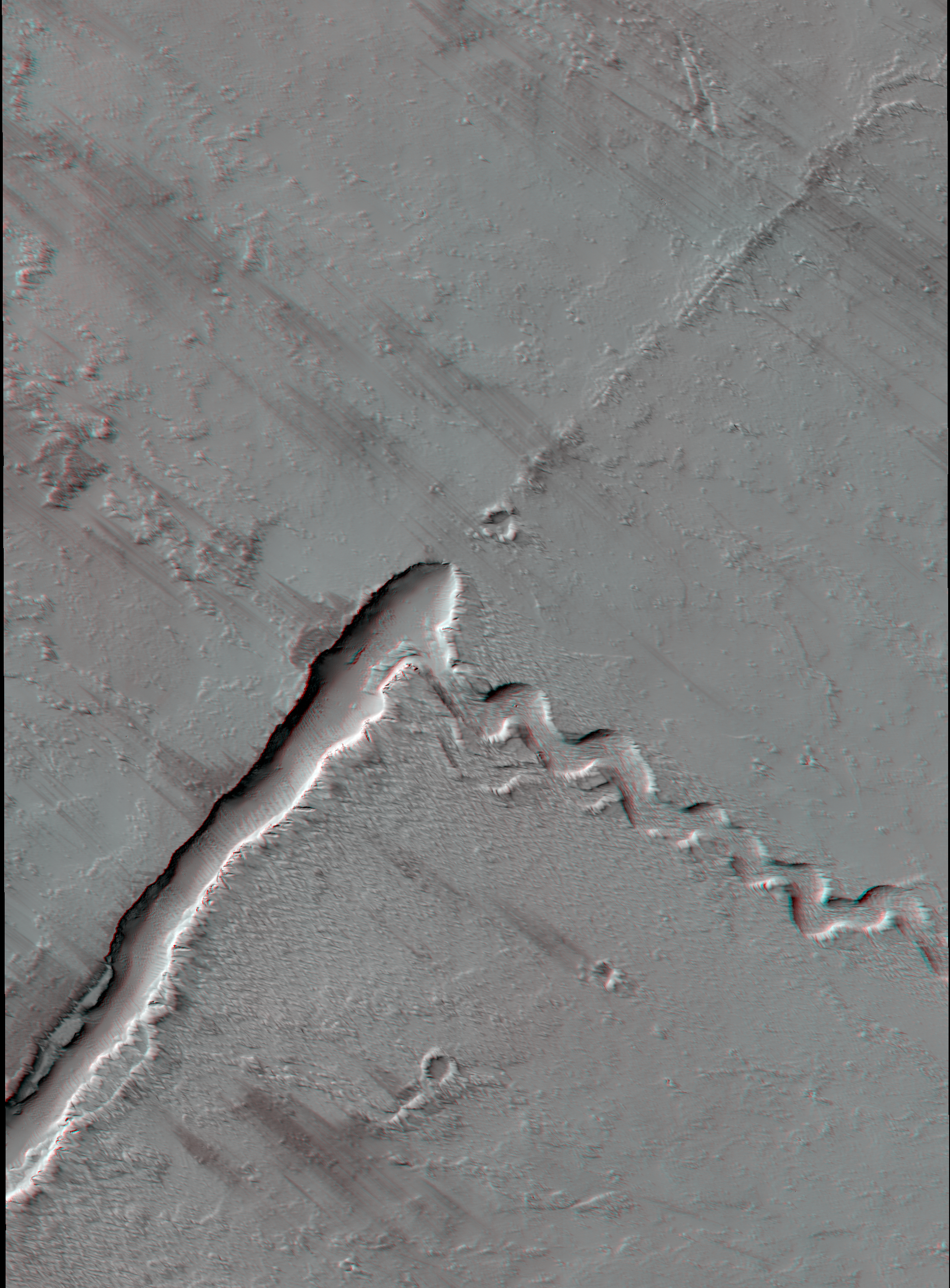

Be sure to look at the stereo anaglyph through red-blue glasses.

Written by: Alfred McEwen  (10 July 2025)

This is a stereo pair with ESP_087435_1775.

Acquisition date
11 February 2025

Local Mars time
15:02

Latitude (centered)
-2.550°

Longitude (East)
247.559°

Spacecraft altitude
257.1 km (159.8 miles)

Original image scale range
51.9 cm/pixel (with 2 x 2 binning) so objects ~156 cm across are resolved

Map projected scale
50 cm/pixel and North is up

Map projection
Equirectangular

Emission angle
7.7°

Phase angle
42.6°

Solar incidence angle
49°, with the Sun about 41° above the horizon

Solar longitude
42.7°, Northern Spring

For non-map projected images
North azimuth:  97°
Sub-solar azimuth:  31.5°
JPEG
Black and white
map projected  non-map

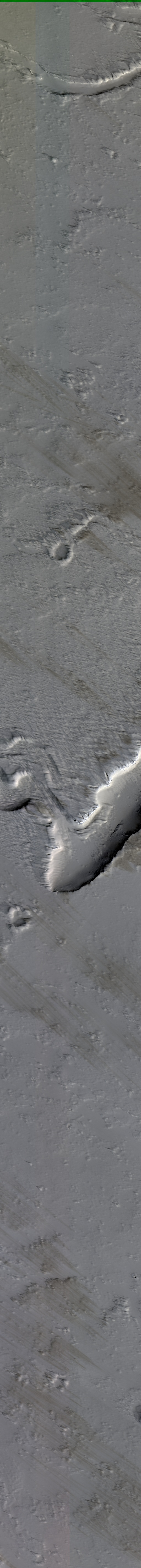

IRB color
map projected  non-map

Merged IRB
map projected

Merged RGB
map projected

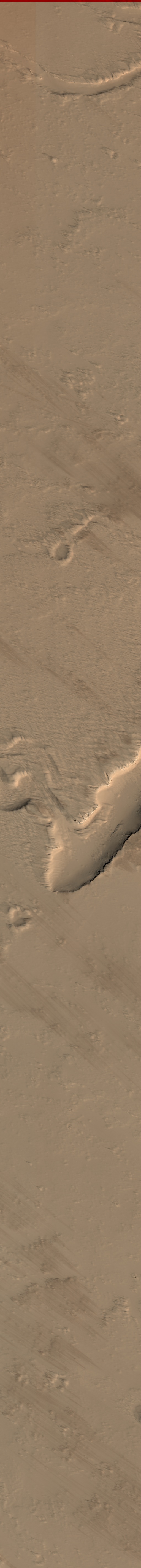

RGB color
non-map projected

JP2
Black and white
map-projected   (132MB)

IRB color
map-projected   (78MB)

JP2 EXTRAS
Black and white
map-projected  (62MB)
non-map           (125MB)

IRB color
map projected  (21MB)
non-map           (82MB)

Merged IRB
map projected  (138MB)

Merged RGB
map-projected  (124MB)

RGB color
non map           (74MB)
ANAGLYPHS
Map-projected, reduced-resolution
Full resolution JP2 download
Anaglyph details page

BONUS
4K (TIFF)
8K (TIFF)
10K (TIFF)

ADDITIONAL INFORMATION
B&W label
Color label
Merged IRB label
Merged RGB label
EDR products
HiView

NB
IRB: infrared-red-blue
RGB: red-green-blue
About color products (PDF)

Black & white is 5 km across; enhanced color about 1 km
For scale, use JPEG/JP2 black & white map-projected images
